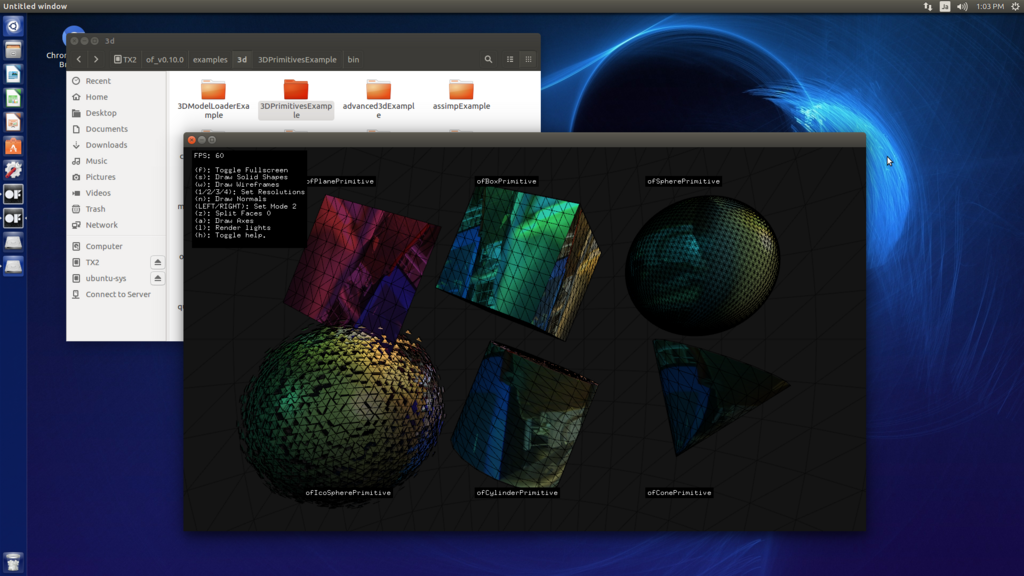

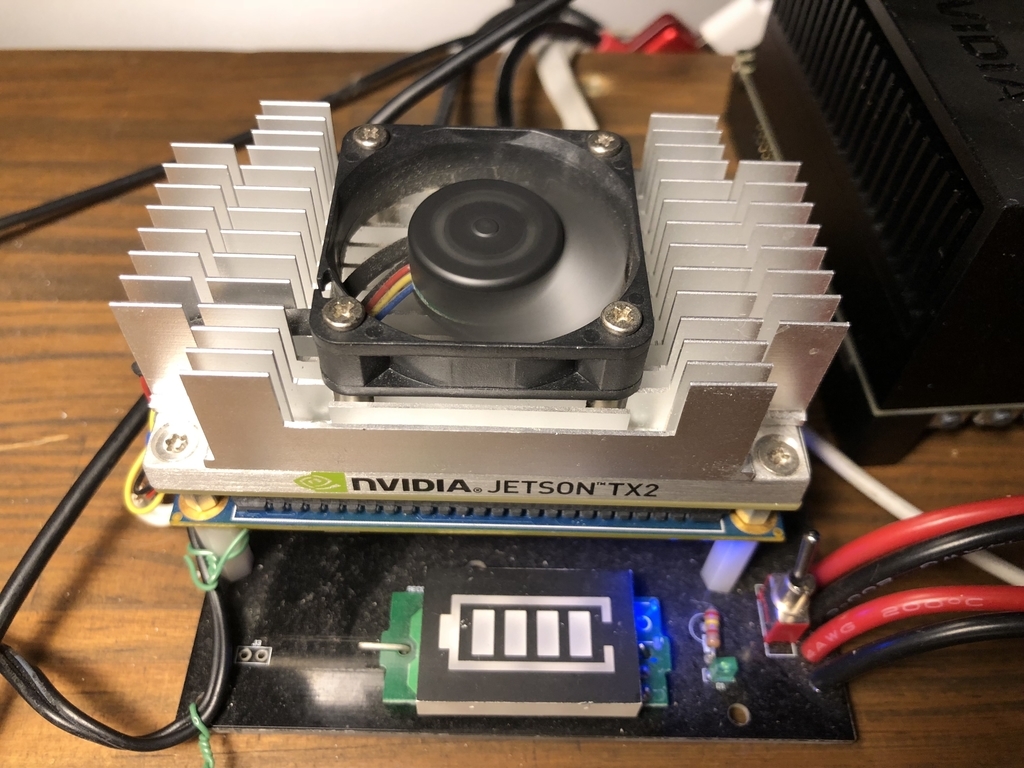

Even OpenFremeworks installed on Jetson TX 2 tried running 16 bit floating point YOLO. Although it stopped as soon as the application was launched, it seemed to be fast, but it seemed like it was not so. Moreover, because it moves with two threads, it seems to be difficult to measure recognition speed, so I ignored it. In the case of software created this time YOLO 3 seems not to work with memory over in TX 2, but since original YOLO 3 can be executed slowly, it seems to be worth a little more trying. We will continue to use YOLO 2's weight data. The installation method is as last time.
まず、立ち上げた時頻繁に止まる現象は First, the phenomenon that stops frequently when launched
It seemed to be caused by setting yolov2.chg. If you set the setting values of bach and subdivisions of the first one like the following, it will work well with restarting the app about twice the worst. The point is in memory setting.
Lastly we added the modified source ofApp.cpp to make multiple threads work more accurately. With this, it is possible to measure recognition speed fairly accurately. Also try setting both the weight and height values of yolov2.cfg, which are related to recognition speed and accuracy of recognition, to 352 for testing. The video that I ran in this .........

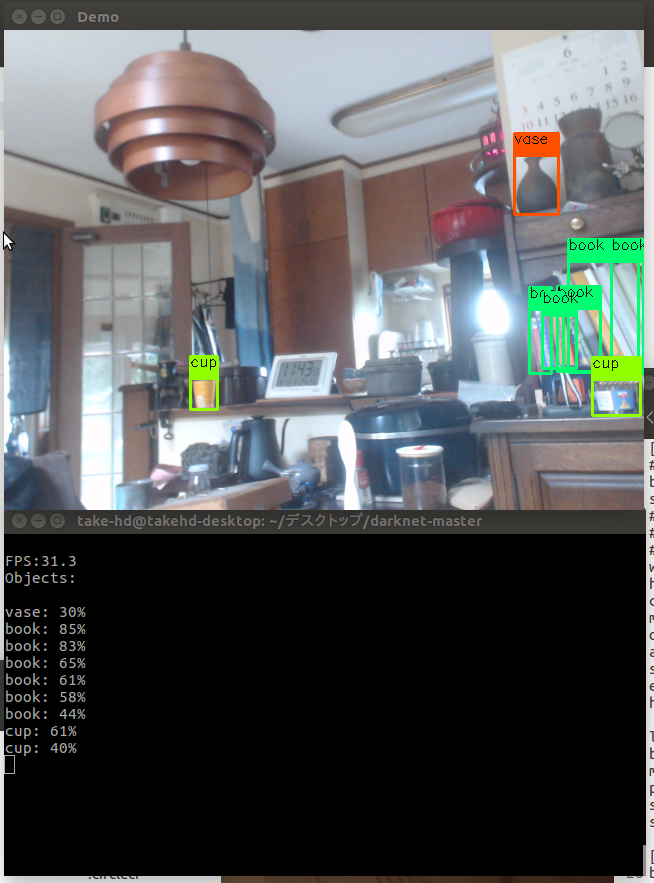

As you can see here, do you recognize the image as much as 30 to 40 fps as the second half turbo works? about. The movie on the MacBook shot in the image seems to be tracking enough although it is using the one being fast-forwarded. Really ?Since WEB CAMERA used here has a maximum of 30 fps, it seems there are cases where it is recognized about twice per frame. As in the first half of the movie, if the entire image is whitish, it is interesting that it goes down to around 15 fps, but this area is a range that can be corrected by gamma correction. Unlike the last time I think that it is possible to confirm that the display of the box clearly showing the class is fast. And pretty accurate! ! .

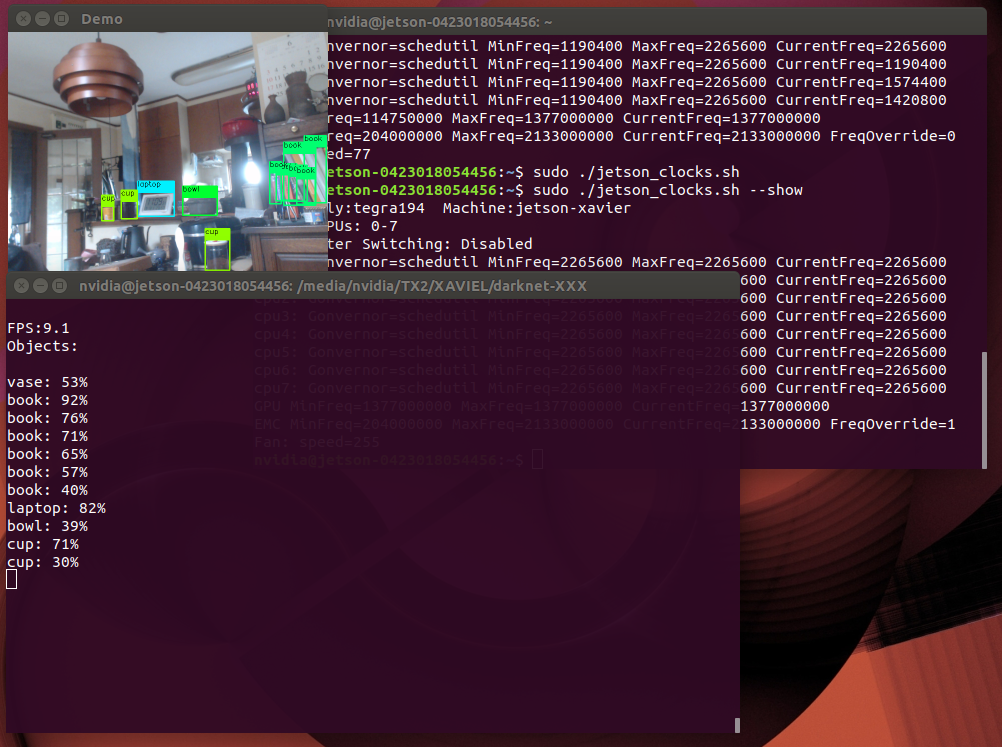

By the way it was around 5.5 fps at 608 x 608, around 10.8 fps at 416 x 416. As this case has no influence of the white balance of the image, the setting around 352 x 352 (multiples of 32) for TX 2 may be the most efficient. Xavier may not be necessary when applying this source for the case. (It became cheap and it seems to continue selling for a while after succeeding at Nintendo Switch ...)
ただし、まだバグが残っているようでmake runしてもエラーが出る場合があります。その場合は、何度もmake run してみて下さい（Xavierも同じ）
main.cpp
#include "ofMain.h"
#include "ofApp.h"
//========================================================================
int main( ){
ofSetupOpenGL(640,480, OF_WINDOW); // <-------- setup the GL context
// this kicks off the running of my app
// can be OF_WINDOW or OF_FULLSCREEN
// pass in width and height too:
ofRunApp( new ofApp());
}
で、ofApp.h
#pragma once
#include "ofMain.h"
#include "ofxCv.h"
class ofApp : public ofBaseApp{
public:
void setup();
void update();
void draw();
void keyPressed(int key);
void keyReleased(int key);
void mouseMoved(int x, int y);
void mouseDragged(int x, int y, int button);
void mousePressed(int x, int y, int button);
void mouseReleased(int x, int y, int button);
void mouseEntered(int x, int y);
void mouseExited(int x, int y);
void windowResized(int w, int h);
void dragEvent(ofDragInfo dragInfo);
void gotMessage(ofMessage msg);
ofVideoGrabber video;
ofImage img;

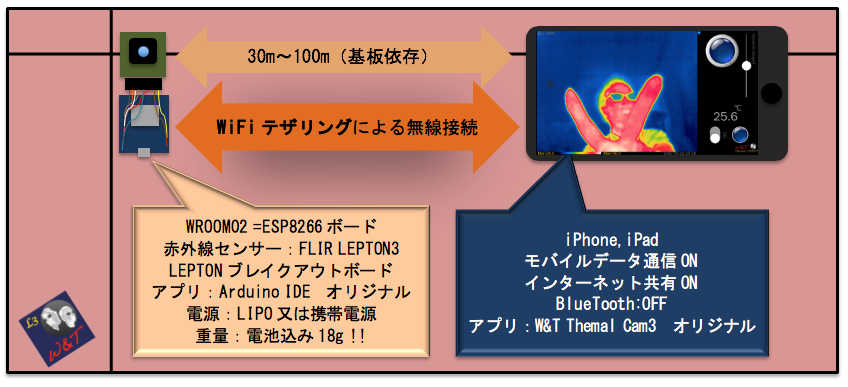

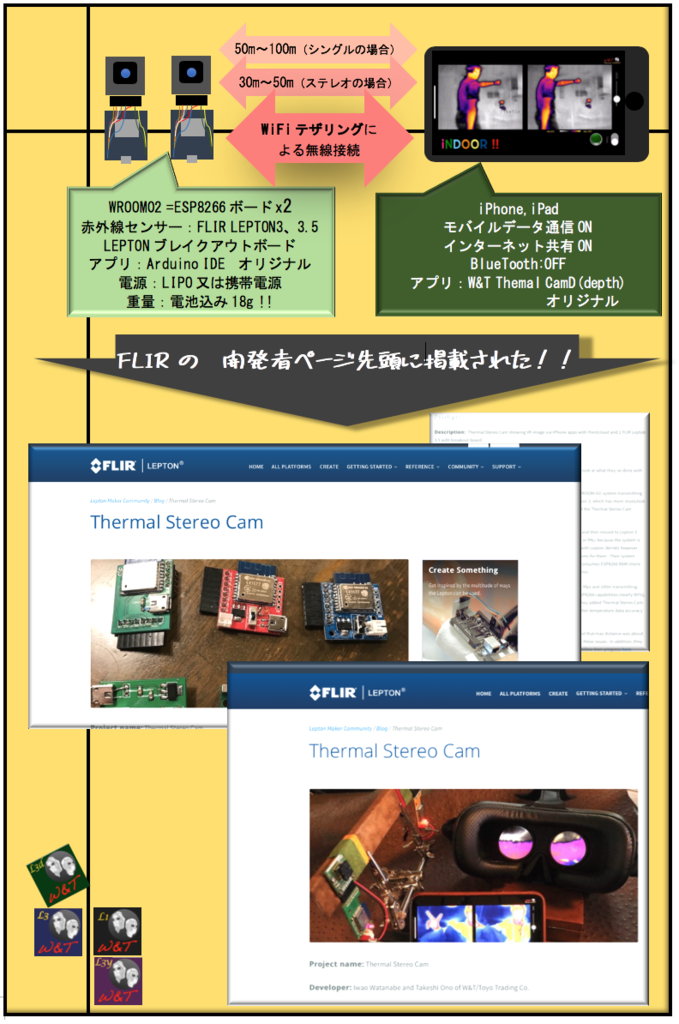

これが市販の軽量ドローンで可能であれば、そして安価であれば大幅なリスク回避が可能となります。そう考えた方がいらっしゃって（W&TのW=渡辺さん）、たまたま私のブログを見て「こりゃー行けるかも」と思ったそうです。そのころ私も赤外線カメラLEPTON1での試行結果から、すぐに実現可能だと思っていました。ただし、LEPTON1では解像度が不足し、最低でもLEPTON3と、省電力軽量、安価なESP8266を使うことが条件。しかし、LEPTON3の特殊性やESP8266の限界、SPIの安定性、2.4Ghz帯の電波干渉、そして経験の無いAppleのアプリ審査という厳しい現実が待っていました。私たちは、専門家のいないアマチュア集団です。ブログやYOUTUBEで知り合った、仙台（小野）、大阪（渡辺）、東京（大澤）、京都の4名がそれぞれ得意分野で知恵を出し合うことになりました。全員がそろうのは1年に1回。Maker Faire Tokyo !!。
There is an addon called ofxDarknet that can run YOLO with openFrameworks (OF) below. However, Windows and Mac only. There is also ofxDarknet for Linux, but you can not install it successfully on both the mother ship and Xavier. I tried it for more than a week and managed somehow but imagenet did not go up to 10 fps. Moreover, the important YOLO does not work. While I was doing various things, this addon works only TinyYOLO (yolo 9000 also works, but because there are 9000 classes, it is impossible to realtime speed). And since we can not specify 16 bit floating point for GPU operation, it is not suitable for Xavier at all. Because I want to make something using YOLO, I gave up on the tenth day alter all. But as I learned about Darknet's file structure little more than before, it seems that I got some skill up. There is a way to link OpenCV 3.4 to OF and use YOLO contained in it, but it seems to be considerably slow compared to Darknet.
I remembered what happened when Jetson Inferrence was incorporated into OF before on TX 1.
How to import the compiled library (.so File =Shared Object) of the standard Darknet (introduced last time) that was built once before. Although this requires some trouble, the original speed and performance will be maintained. Standard Darknet does not make 16 bit floating point specification and .so file, but it can be created with this. You can do it by all means! !
Hints were found in the Makefile in the downloaded Darknet folder and two yolo samples src / console_dll.cpp, src / yolo_v2_class.hpp. If you remove the part related to OpenCV in these files, you can see that there are only 4 functions necessary for image recognition. That is, weight and cfg, 3 functions to read the class name file.
And a function that returns images and bounding box coordinates just found by specifying the recognition criterion coefficient and class numbers . The big issue to convert OF moves data into Darknet image input data image_t, and this time it is only this part that uses OpenCV. I used the source written by the author for cv :: Mat ---> image_t transformation, but it does not bother to convert from OF data to cv :: Mat (that is, without using OpenCV?) feel good . Do not care,

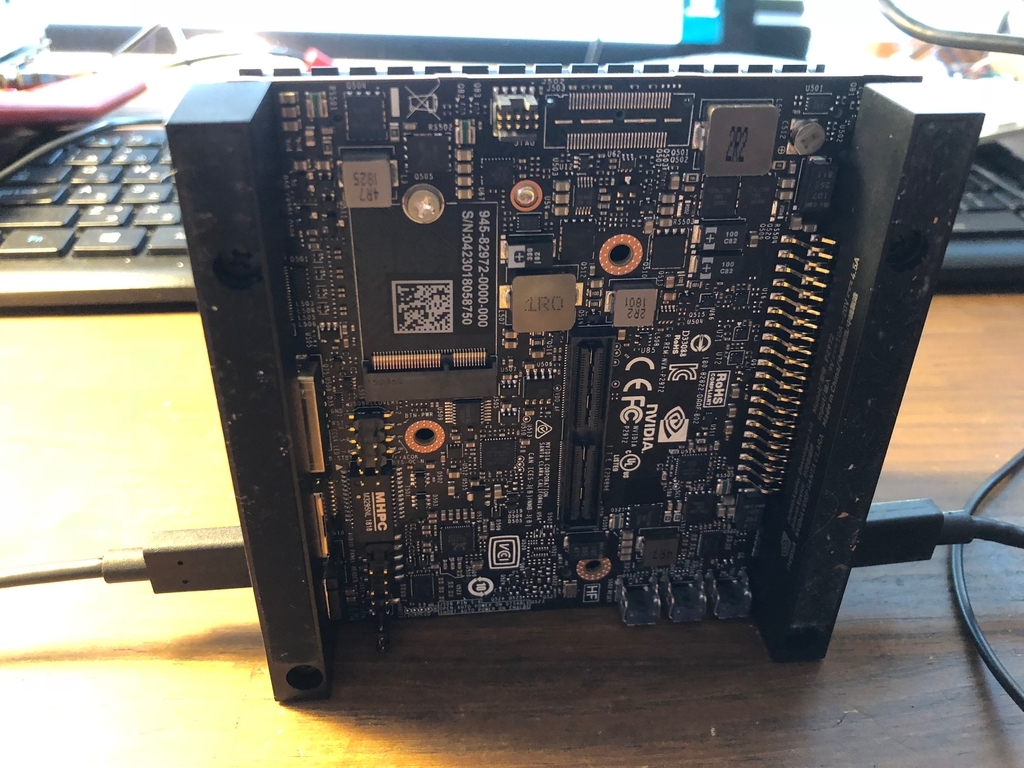

In the case of Xavier, the capacity of the internal eMMC is small, so you must install it with an external HDD, SSD or internal SD card.
First, unzip the compressed file downloaded from the above site, set the folder name as darknet - XXX for the time, and build Darknet. Looking at the source, using OpenCV is the image processing part, but there is the possibility of specifying extra libraries related to OpenCV and possibility of conflict with OF (the problem of ofxDarknet). There is an OpenCV addon named ofxCV in OF, so we can use it. So it is necessary to make settings that do not use OpenCV. Enter darknet - XXX, and modify the contents of Makefile as follows. So, make !!
1〜７行目まで上のように修正、３６行目ARCのコメントを外し、数値３カ所を修正Xabierは62、TX2は61にします Modify 1 ~ 7 lines as above, remove comment on line 36 ARC, fix 3 numerical values Xabier will be 62, TX 2 will be 61
Copy two folders darknet-XXX / cfg darknet-XXX / data (cfg and data folder in the Darknet folder)
Download the weight file and copy it. In this time I think that it is good to put in two of yolov2.weights and yolov3.weights. The download method is written on the above Darknet homepage. (It seems like it was automatically downloaded at Darknet installation ....)
Also copy cooperBlac.ttf font file into the data folder. (In of/examples/graphics/fontShapesExample/bin/data)
Eventually the contents of the bin will be as follows. There is an extra weights file but not mind.
Overwrite main.cpp, ofApp.h, ofApp.cpp from below. The source is sloppy but I am sorry ....
以下 main.cpph
#include "ofMain.h"
#include "ofApp.h"
//========================================================================
int main( ){
ofSetupOpenGL(1024,768, OF_WINDOW); // <-------- setup the GL context
// this kicks off the running of my app
// can be OF_WINDOW or OF_FULLSCREEN
// pass in width and height too:
ofRunApp( new ofApp());
}
以下 ofApp.h
#pragma once
#include "ofMain.h"
#include "ofxCv.h"
class ofApp : public ofBaseApp{
public:
void setup();
void update();
void draw();
void keyPressed(int key);
void keyReleased(int key);
void mouseMoved(int x, int y);
void mouseDragged(int x, int y, int button);
void mousePressed(int x, int y, int button);
void mouseReleased(int x, int y, int button);
void mouseEntered(int x, int y);
void mouseExited(int x, int y);
void windowResized(int w, int h);
void dragEvent(ofDragInfo dragInfo);
void gotMessage(ofMessage msg);
ofVideoGrabber video;
ofImage img;
};
以下 ofApp.cpp
#include "ofApp.h"
#include "src1/yolo_v2_class.hpp" // imported functions from DLL
std::string names_file = "data/coco.names";
std::string cfg_file = "cfg/yolov2.cfg";
std::string weights_file = "yolov2.weights";
float const thresh = 0.20;
cv::Mat mat;
ofTrueTypeFont cop20,cop50;
Detector detector(cfg_file, weights_file);
std::vector result_vec ;
float ttt,ttt1; //Time
image_t xxx;
std::vector objects_names_from_file(std::string const filename) {
std::ifstream file(filename);
std::vector file_lines;
if (!file.is_open()) return file_lines;
for(std::string line; getline(file, line);) file_lines.push_back(line);
std::cout << "object names loaded \n";
return file_lines;
}
auto obj_names = objects_names_from_file(names_file);
void show_console_result(std::vector const result_vec, std::vector const obj_names) {
for (auto &i : result_vec) {
if (obj_names.size() > i.obj_id)
ofNoFill();
ofSetLineWidth(3);
//Color Set!!
int const colors[6][3] = { { 1,0,1 },{ 0,0,1 },{ 0,1,1 },{ 0,1,0 },{ 1,1,0 },{ 1,0,0 } };
int const offset = i.obj_id * 123457 % 6;
int const color_scale = 150 + (i.obj_id * 123457) % 100;
ofSetColor(colors[offset][0]*color_scale, colors[offset][1]*color_scale, colors[offset][2]*color_scale,80);
ofDrawRectRounded(i.x,i.y,i.w,i.h,5);
//Mozi Draw!!
string ss;
ss=" "+ obj_names[i.obj_id]+" "+ofToString(i.prob*100,1);
ofFill();
ofDrawRectangle(i.x,i.y,i.w,20);
ofSetColor(255,255,255,95);
cop20.drawString(ss, i.x,i.y+15);
}
}
static image_t make_empty_image(int w, int h, int c)
{
image_t out;
out.data = 0;
out.h = h;
out.w = w;
out.c = c;
return out;
}
static image_t make_image_custom(int w, int h, int c)
{
image_t out = make_empty_image(w, h, c);
out.data = (float *)calloc(h*w*c, sizeof(float));
return out;
}
static image_t ipl_to_image(IplImage* src)
{
unsigned char *data = (unsigned char *)src->imageData;
int h = src->height;
int w = src->width;
int c = src->nChannels;
int step = src->widthStep;
image_t out = make_image_custom(w, h, c);
int count = 0;
for (int k = 0; k < c; ++k) {
for (int i = 0; i < h; ++i) {
int i_step = i*step;
for (int j = 0; j < w; ++j) {
out.data[count++] = data[i_step + j*c + k] / 255.;
}
}
}
return out;
}
void detect_x(image_t x)
{
ttt=ofGetElapsedTimef();
result_vec = detector.detect(x,thresh,false);
ttt=ofGetElapsedTimef()-ttt;
ttt1=ttt;
}
//--------------------------------------------------------------
// DetectNet部分をマルチスレッドにする。
class Detect_x: public ofThread {
public:
void threadedFunction(){
ok=false;
detect_x(xxx);
ok=true;
}
bool ok;
};
Detect_x Found_X;
//--------------------------------------------------------------
void ofApp::setup(){
cop20.load("cooperBlack.ttf",15,true,true,true);
cop50.load("cooperBlack.ttf",30,true,true,true);
img.allocate(960,720,OF_IMAGE_COLOR);
video.setDeviceID( 0 );
video.setup(960,720,OF_PIXELS_RGBA);
Found_X.ok=true;
}
//--------------------------------------------------------------
void ofApp::update(){
ofLog() << ofGetFrameRate();
video.update();
if(video.isFrameNew()==true){
img.setFromPixels(video.getPixels().getData(),video.getWidth(),video.getHeight(),OF_IMAGE_COLOR);
mat=ofxCv::toCv(img);
if (Found_X.ok){
cv::Mat imgx;
cv::cvtColor(mat, imgx, cv::COLOR_RGB2BGR);
std::shared_ptr image_ptr(new image_t, [](image_t *imgx) { detector.free_image(*imgx); delete imgx; });
std::shared_ptr ipl_small = std::make_shared(imgx);
*image_ptr = ipl_to_image(ipl_small.get());
xxx=*image_ptr;
if (Found_X.ok){
Found_X.ok=false;
Found_X.startThread();
}
}
}
}
//--------------------------------------------------------------
void ofApp::draw(){
ofSetColor(255);
video.draw( 0, 0 );
Found_X.lock();
show_console_result(result_vec, obj_names);
Found_X.unlock();
string ss1;
ss1 =ofToString(ttt1,3)+ " sec";
ofSetColor(255);
cop50.drawString(ss1, 50,700);
}
//--------------------------------------------------------------
void ofApp::keyPressed(int key){
}
//--------------------------------------------------------------
void ofApp::keyReleased(int key){
}
//--------------------------------------------------------------
void ofApp::mouseMoved(int x, int y){
}
//--------------------------------------------------------------
void ofApp::mouseDragged(int x, int y, int button){
}
//--------------------------------------------------------------
void ofApp::mousePressed(int x, int y, int button){
}
//--------------------------------------------------------------
void ofApp::mouseReleased(int x, int y, int button){
}
//--------------------------------------------------------------
void ofApp::mouseEntered(int x, int y){
}
//--------------------------------------------------------------
void ofApp::mouseExited(int x, int y){
}
//--------------------------------------------------------------
void ofApp::windowResized(int w, int h){
}
//--------------------------------------------------------------
void ofApp::gotMessage(ofMessage msg){
}
//--------------------------------------------------------------
void ofApp::dragEvent(ofDragInfo dragInfo){
}
bin/cfg/yolov2.cfgを修正 Fix bin/cfg/yolov2.cfg
bin/yolov3.weightを使用する場合はyolov3.cfgの同じ箇所を修正
最初の方を以下のように変更
[net]
# Testing
#batch=1 コメントを入れる
#subdivisions=1 コメントを入れる
# Training
batch=64 コメントを外す
subdivisions=8 コメントを外す
width=608 608に変更 スピード重視の場合は416（３２の倍数なら動く）
height=608 608に変更 スピード重視の場合は416（３２の倍数なら動く）
channels=3

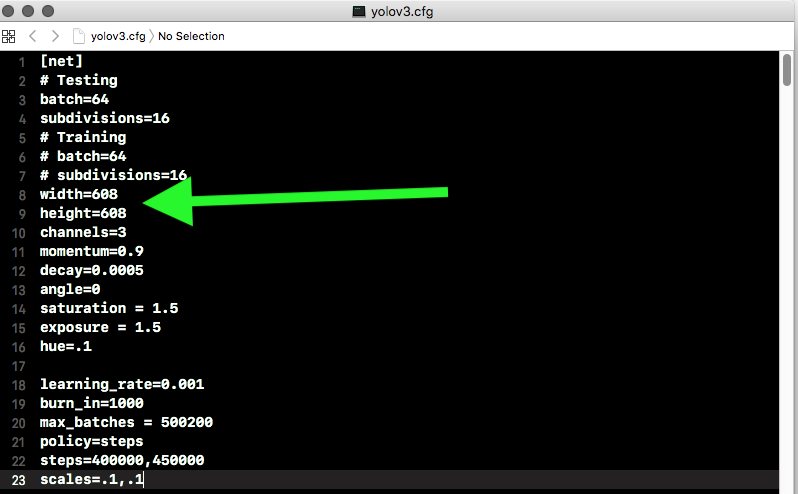

Fix bin/cfg/yolov2.cfg
When using bin/yolov3.weight fix the same place in yolov3.cfg
Change the first one as follows
[net]
# Testing
# batch = 1Add comment
# subdivisions = 1 Add comments
# Training
batch = 64 Remove comments
subdivisions = 8Remove comments
width = 608Changed to 608 for better speed it is 416 (it works if it is a multiple of 32)
height = 608 Changed to 608 for better speed it is 416 (it works if it is a multiple of 32)
Return to the beginning of the Darknet-TEST folder, connect the camera,
make
make run
It is executed in.
The first step is troublesome, but from the second time you can copy new folders and create new programs. I did not think that high speed YOLO would work just by this.
Since the recognition part is moved by another thread, the speed of the image itself does not decrease and it keeps 60 fps on OF (image speed depends on the camera). The recognition speed is almost the same as the one written in the last article. That was a practical level of speed! ! .

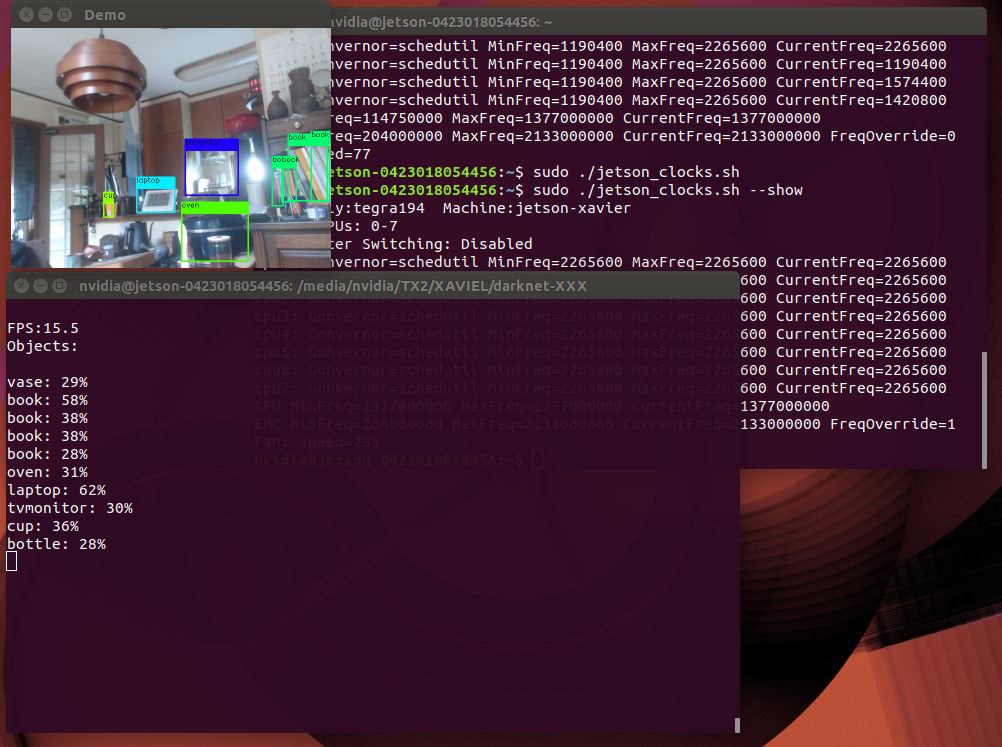

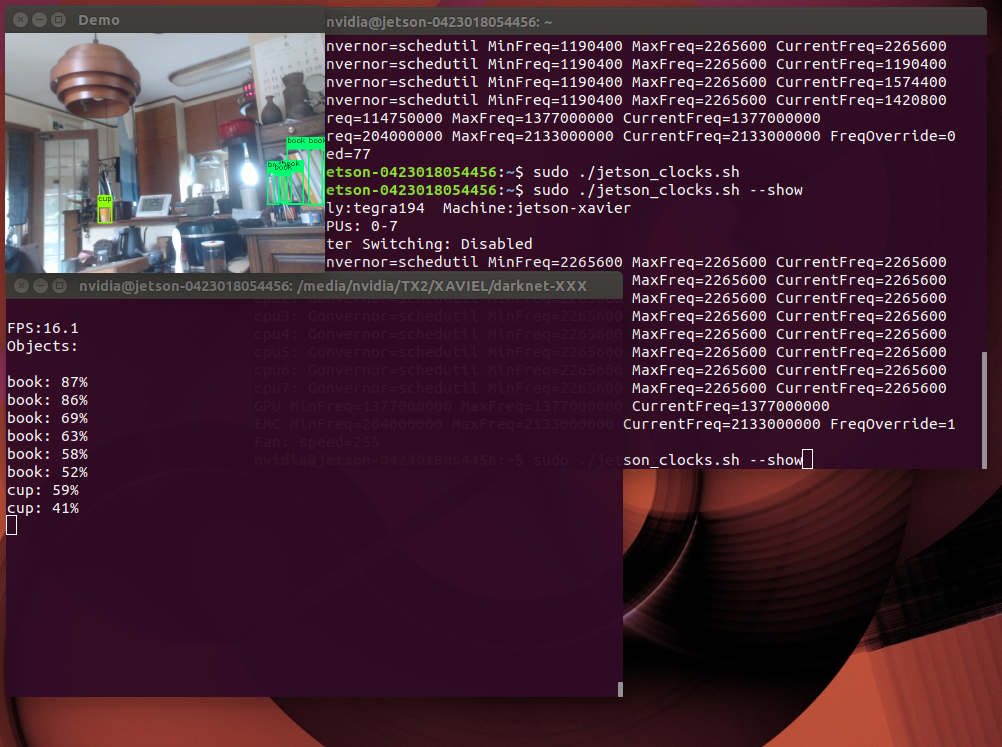

実際にXavierで実行してみると....... Actually running it with Xavier .......

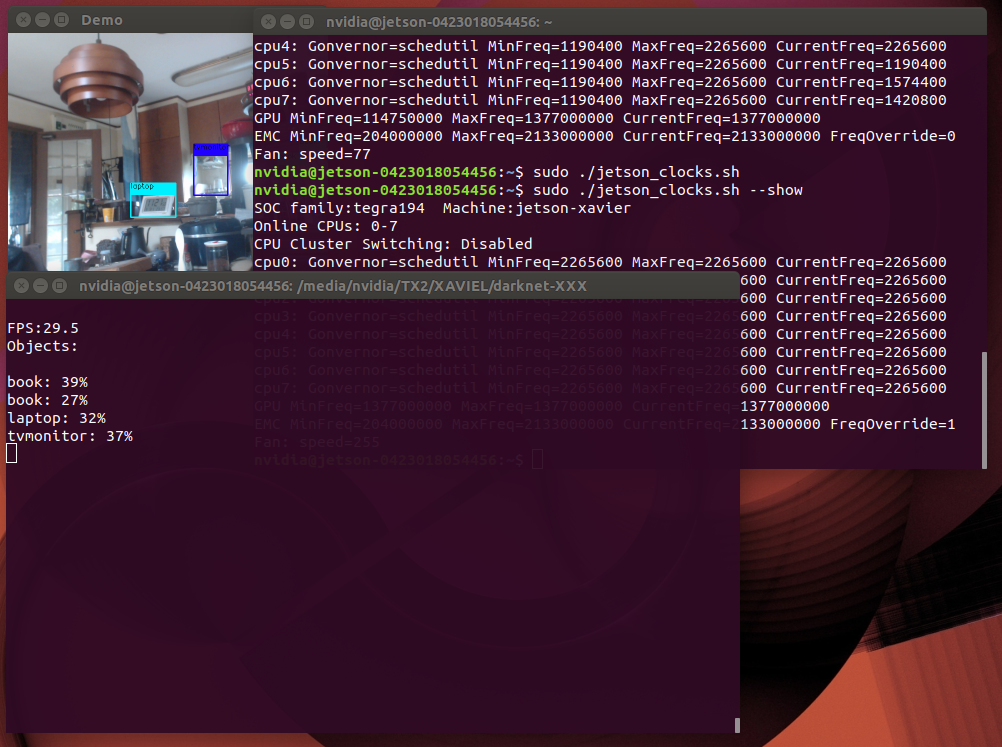

今回はyolov2.weightを使用。yolov2.cfg 中width=608 height=608にした場合。画像は30fpsのままで認識にかかった時間は左下に表示この場合は1/0.069=14.49fps!!We used yolov2.weight this time. When yolov2.cfg width = 608 height = 608. The image remains at 30 fps and the recognition time is displayed in the lower left. In this case 1 / 0.069 = 14.49 fps !!

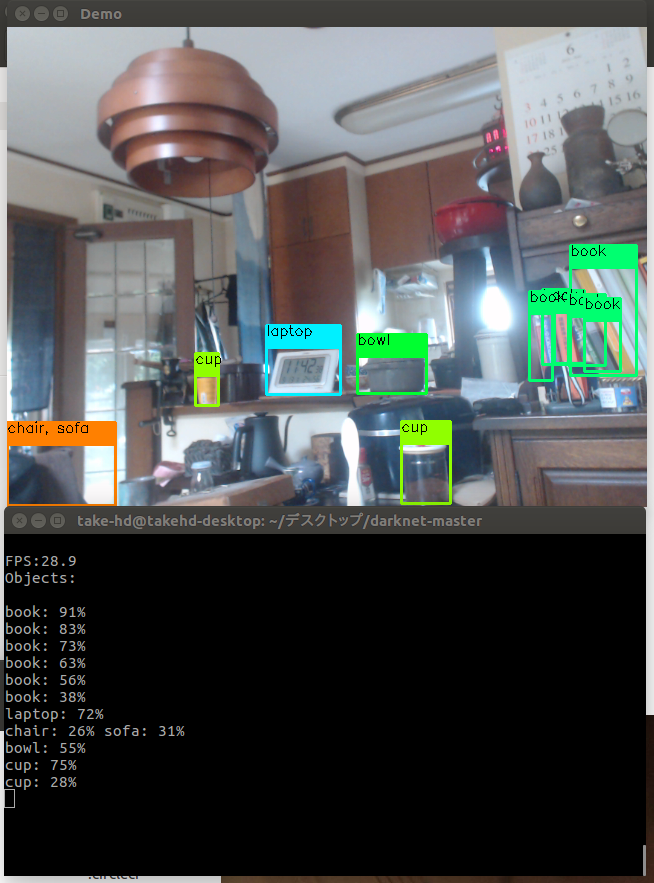

今回はyolov2.weightを使用。yolov2.cfg 中width=416 height=416にした場合。この場合は1/0.039=25.64 fps!! Tiny-yoloだとここまで認識しません。 We used yolov2.weight this time. When yolov2.cfgwidth = 416 height = 416. In this case 1 / 0.039 = 25.64 fps !! Tiny-yolo does not recognize so far.
Since the main thread is almost 60 fps, another complicated processing can still be performed still more based on the recognition content. Is not this the real pleasure of putting it on the C framework? Most addons of OF can be executed. YOLO's learning work is tried in the past articles, but this is the case when using the mother ship Ubuntu.
If this makes it easy to learn in Xavier, amateurs will be able to apply learning and recognition anywhere within the same model. Also, this time only YOLO realization, Darknet still has many practical examples. It is no longer a thrilling excuse.
